Best Dual Monitor Setup for Programmers in 2026: Picks and Layout

Quick picks: Best pair: Dell U2725QE | Budget 4K pair: Dell S2725QC | Alternative: LG 27UK850 | Best for Mac: BenQ PD2725U | Main + vertical: Samsung Odyssey G8 G80HF | Arm: Ergotron LX Dual | Dock: CalDigit TS5 Plus

We may earn a commission if you buy through our links.

The best dual monitor setup for programmers in 2026 is two 27-inch 4K monitors on a dual arm, and for most people that means a pair of Dell U2725QE panels at around $550 each, or a pair of Dell S2725QC panels at around $300 each if the budget is tighter. Add an Ergotron LX Dual and, for a MacBook Pro, a Thunderbolt dock, and the whole thing lands between $700 and $1,700. Skip the pair if you mainly work in one wide timeline; a single ultrawide suits that better.

This guide covers what to buy and how to lay it out. The cable-by-cable install, display settings, and arm mounting are in our step-by-step dual monitor setup guide, which this article does not repeat.

Why do two 27-inch 4K monitors beat one ultrawide for most coders?

Vertical pixels. A 34-inch 3440x1440 ultrawide gives you 1440 rows; a 27-inch 4K gives you 2160 per screen. Code is read top to bottom, so the extra rows show more of a file, a longer stack trace, and a taller diff. Two panels also tilt independently, so the secondary can angle toward you or rotate to portrait. Density is the other win: 4K at 27 inches is about 163 PPI; the 34-inch ultrawide is about 109 PPI, which looks soft on macOS.

The ultrawide wins in three cases. A video or audio timeline is easier on one unbroken surface. A wide terminal or three-pane IDE layout avoids the seam. And a 49-inch 5120x1440 panel is effectively two 27-inch 1440p monitors with no bezel, which is a fine programming display.

Matching vs mismatched panels

Buy two of the same monitor if you can. Identical panels share height, bezel, color, and scaling, so a window dragged across the seam looks the same on both sides. Mismatched works only if you control the variables: same size and resolution, both on an arm so the top edges line up, and the same color temperature and brightness. A 4K next to a 1440p forces different scaling on each screen and gets old within a week.

Should the second monitor be vertical for code?

Often, yes. A 27-inch 4K rotated to portrait is 2160 pixels wide by 3840 tall; at 150 percent scaling that is about 1440 x 2560 effective, roughly 120 lines of code or a whole log file at once. Use an IPS panel, since VA shifts color off-axis, and confirm the arm rotates 90 degrees. The downside is height: a 27-inch panel in portrait is about 24 inches tall, so the top edge sits high; a 24-inch panel is the usual compromise.

PPI and scaling: macOS vs Windows

macOS renders best at exact 2x, which is why the 5K 27-inch (about 218 PPI) looks perfect and a 27-inch 4K (163 PPI) looks best at “Looks like 1920x1080.” Most people run the 4K at “Looks like 2560x1440” instead; macOS renders that at 5K and scales down, which any M-series chip handles without noticeable cost. A 27-inch 1440p panel at 109 PPI is not Retina on a Mac and text looks softer. Our best monitor for MacBook Pro guide goes deeper.

Windows handles fractional scaling natively, so a 27-inch 4K at 150 percent is the sweet spot and 1440p at 100 percent is fine. The only wrinkle is older apps that ignore scaling and blur. Set the same scaling on both monitors so windows do not resize crossing the seam.

Best pair: Dell U2725QE

Two Dell UltraSharp U2725QE monitors is the pair we recommend to anyone who can spend around $1,100 on displays. Each is a 27-inch 4K IPS Black panel at 120Hz, with a Thunderbolt 4 input that Dell rates for up to 140W laptop charging, a built-in KVM, Ethernet, and a downstream Thunderbolt port. That last port lets you chain monitor two off monitor one, which works on macOS as well as Windows because it is Thunderbolt rather than DisplayPort MST.

Street price is around $550 each; Dell discounts often, so check the price. IPS Black roughly doubles the contrast of standard IPS, so dark IDE themes look less grey, and the KVM switches one keyboard and mouse between a work laptop and a personal desktop without a separate box.

Budget 4K pair: Dell S2725QC

The Dell S2725QC is the same size and resolution on a standard IPS panel, 120Hz, with USB-C at 65W and two HDMI 2.1 inputs, for around $300 each. Two cost about what one U2725QE does, and for reading code the sharpness is identical.

What you give up: no downstream port, so each monitor needs its own cable from the computer or dock; a smaller USB hub; standard IPS contrast; and a lesser stand, which does not matter on an arm. Buy this pair and put the difference into the arm and dock.

Alternative: LG 27UK850

The LG 27UK850-W has been the default 27-inch 4K USB-C recommendation for years: an IPS panel at 60Hz, USB-C with about 60W of charging, DisplayPort and two HDMI inputs, and a stand with height and pivot adjustment. It typically sells around $400, less for older stock.

Pick it over the S2725QC only if it is cheaper or you want the stand’s pivot for a portrait secondary without an arm. At 60Hz it scrolls less smoothly than the 120Hz Dells, which you notice once you have used a faster panel.

Best for Mac: BenQ PD2725U

The BenQ PD2725U is a 27-inch 4K IPS panel at 60Hz with Thunderbolt 3 in and out, factory color calibration, and a Mac-specific color mode. Two PD2725U units daisy-chain from one Thunderbolt port on a MacBook Pro, with the first monitor charging the laptop at around 65W, so the whole setup is one cable and no dock. It usually sells around $700 to $800; check the current price.

This is the pair for developers who also design or want color that matches the MacBook Pro’s screen. For pure code, the U2725QE gives you 120Hz, a KVM, and more power for less.

Single 5K plus vertical: Samsung Odyssey G8 G80HF

If you want one exceptional main screen and a cheaper secondary, put a Samsung Odyssey G8 G80HF in the center and a Dell S2725QC in portrait beside it. The G80HF is a 27-inch 5K (5120x2880) IPS panel at 165Hz for $950, the same 218 PPI as a Studio Display at almost three times the refresh rate. See our best 5K monitor guide for the full comparison.

Two caveats: as far as we can confirm it is DisplayPort and HDMI 2.1 only, so a laptop needs a dock, and 5K at 165Hz needs DisplayPort 2.1 or DSC from the GPU or dock. The G80HF plus a $300 vertical S2725QC is about $1,250 and arguably the best-looking combination here.

Which dual monitor arm: Ergotron LX Dual vs VIVO?

The Ergotron LX Dual side-by-side mount holds two 27-inch panels on one clamp, moves each arm independently, and holds position for years. Ergotron’s weight range covers every monitor above; street price is usually around $300, and the single LX in our review is $179 if you would rather buy two singles.

The VIVO dual monitor stand at around $49 is the budget option: a bolt-tensioned design that holds two 27-inch panels but takes a hex key to reposition. It suits a pair of S2725QCs on a fixed layout.

One clamp means both top edges line up automatically. Our best monitor arm guide covers weight ratings and clamp thickness.

Which dock runs two 4K monitors from a MacBook Pro?

The CalDigit TS5 Plus is a 20-port Thunderbolt 5 dock with three downstream Thunderbolt 5 ports, 140W host charging, and 10Gb Ethernet, listed at $499 in our review. It drives two 4K monitors (three on chips that allow it), charges the laptop over one cable, and has USB to spare. Our best Thunderbolt 5 dock guide lists cheaper ones.

Two checks before buying any dock. The display limit is set by the chip, not the dock: Apple lists two external displays for the base M4 MacBook Pro and more for M4 Pro and M4 Max, so confirm your model on Apple’s tech specs page. And macOS does not support DisplayPort MST, so a dock that splits one DisplayPort into two shows a mirrored image on a Mac; use Thunderbolt outputs.

Dual monitors for programmers compared

Monitor	Size / Resolution	Refresh	Panel	USB-C / TB power	Daisy chain	Approx. price
Dell U2725QE	27” / 4K	120Hz	IPS Black	Thunderbolt 4, up to 140W	Yes (Thunderbolt)	~$550
Dell S2725QC	27” / 4K	120Hz	IPS	USB-C, 65W	No	~$300
LG 27UK850-W	27” / 4K	60Hz	IPS	USB-C, ~60W	No	~$400
BenQ PD2725U	27” / 4K	60Hz	IPS	Thunderbolt 3, ~65W	Yes (Thunderbolt)	~$700–$800
Samsung Odyssey G8 G80HF	27” / 5K	165Hz	IPS	None (DP/HDMI only)	No	$950

Prices are street prices at the time of writing; check the listing before you buy.

How should two monitors be laid out for coding?

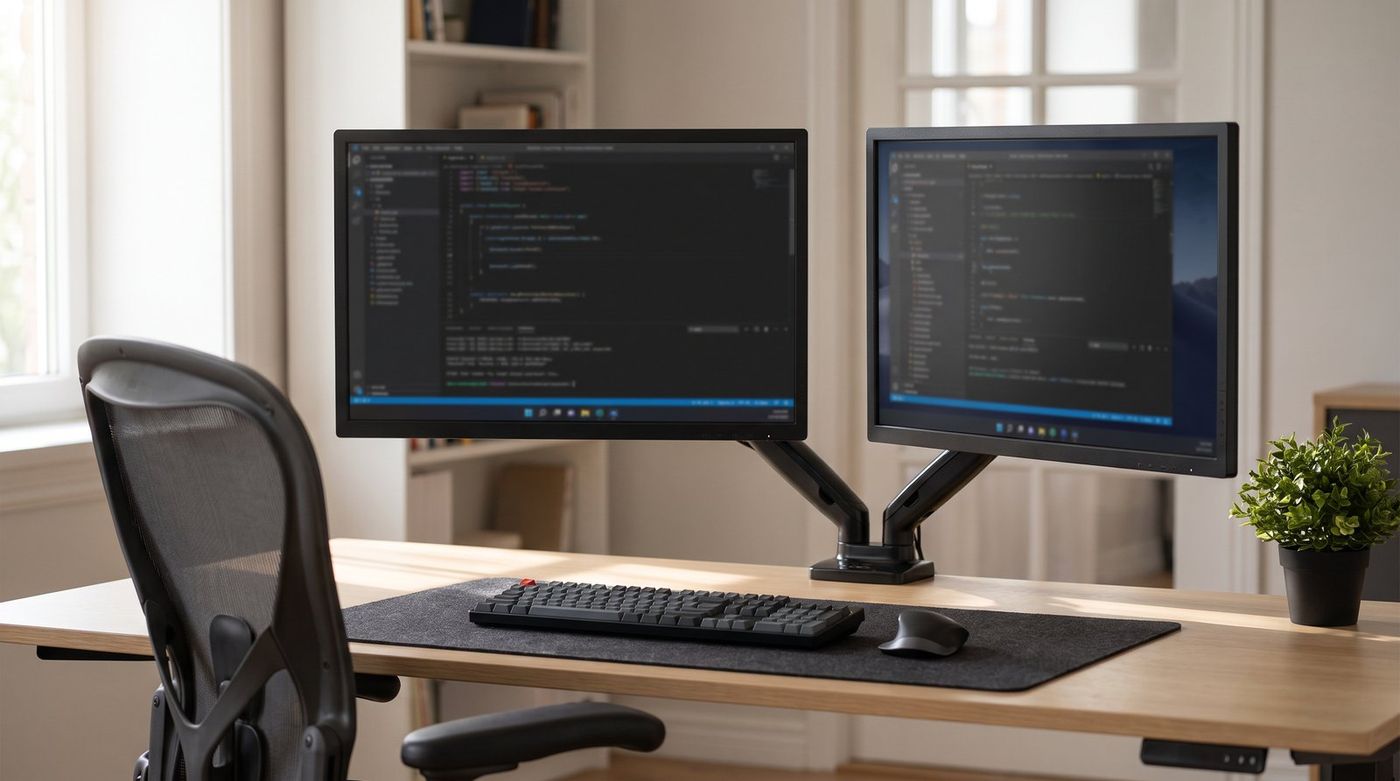

Main centered, second angled. Put the monitor you look at most directly in front of you, top edge at about eye level and 24 to 30 inches away. Put the second on the side of your dominant hand, angled inward 15 to 30 degrees so its inner edge nearly touches the main and its face points at your chair. Do not center the seam; you will spend the day turning your head.

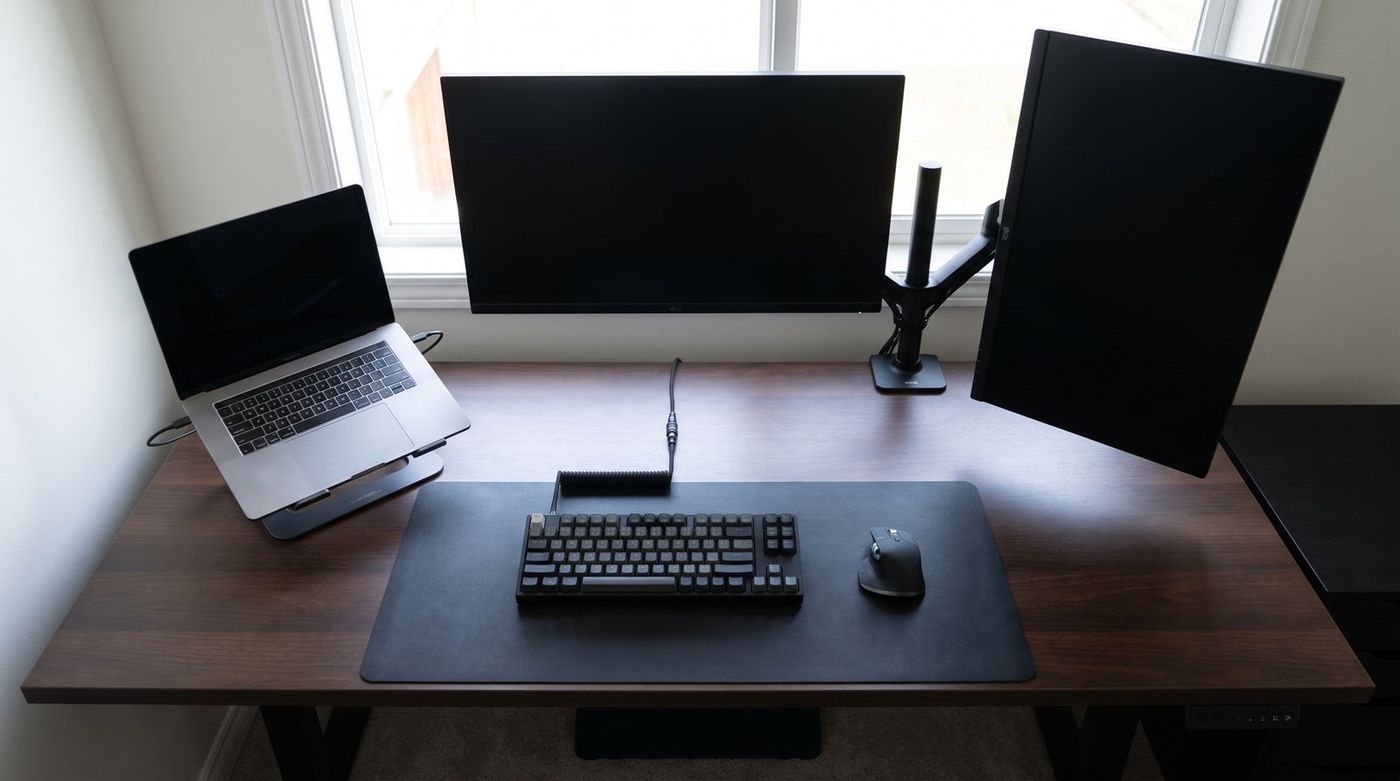

Main plus vertical. Same idea with the secondary in portrait and pushed close to the main. Align the vertical centers, not the bottoms, so your eyes travel horizontally between them.

Cable routing. Run video and power cables through the arm’s channel, down the clamp, and into an under-desk tray with the dock and power strip. With a daisy chain or a dock, one cable reaches the laptop. Our triple monitor setup guide covers adding a third screen.

Setup tips for a dual monitor programming desk

• Windows: install PowerToys and use FancyZones to define layouts per monitor, such as a two-thirds editor and one-third terminal on the main and a full-height browser on the secondary.
• macOS: Rectangle (free) adds keyboard window snapping; Stage Manager works well on the secondary for grouping reference windows. Assign Spaces to displays in Mission Control so full-screen apps stay put.
• Match color temperature. Set both monitors to the same preset (sRGB or 6500K), then match brightness by eye with a white page on each, and enable Night Shift or Night Light on both.
• Set the same scaling on both screens and confirm both are running at their full refresh rate; Windows often defaults a second monitor to 60Hz.

For the physical install and display settings screens, follow our dual monitor setup steps; for the rest of the desk, our best desk setup for programmers guide covers chairs, keyboards, and lighting.

Bottom line

Two Dell U2725QE panels on an Ergotron LX Dual is the dual monitor setup most programmers should copy in 2026, and two Dell S2725QC panels on a VIVO dual mount gets you 90 percent of it for about half the price. Mac users who care about color should buy two BenQ PD2725U and skip the dock; everyone else on a MacBook Pro should add a CalDigit TS5 Plus. If you want one screen to be special, the Samsung Odyssey G8 G80HF plus a vertical S2725QC is the combination to build around.
